PCA with K means

Download data from CSD3 in case S3 bucket is offline

#!/bin/bash

# Define shot IDs
shot_ids=(23447 30005 30021 30421)

# Remote info
remote_alias="CSD3"
remote_dir="/rds/project/rds-mOlK9qn0PlQ/fairmast/upload-tmp/level2"

# Loop through each shot_id and use rsync to download
for shot_id in "${shot_ids[@]}"; do
    echo "Downloading ${shot_id}.zarr from ${remote_alias}..."
    rsync -avz "${remote_alias}:${remote_dir}/${shot_id}.zarr" ./
done

echo "All downloads complete."

# Denoising
import zarr
import zarr.storage
import fsspec
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
from matplotlib import cm
from scipy.signal import stft
from scipy.signal import find_peaks
from collections import defaultdict
from scipy.ndimage import median_filter, gaussian_filter
from skimage import measure
import pandas as pd
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA
from pathlib import Path
from scipy.signal import savgol_filter

# List of shot IDs
shot_ids = [23447, 30005, 30021, 30421]  # Add more as needed

# S3 endpoint
endpoint = "https://s3.echo.stfc.ac.uk"
fs = fsspec.filesystem(
    protocol='simplecache',
    target_protocol="s3",
    target_options=dict(anon=True, endpoint_url=endpoint)
)

store_list = []
zgroup_list = []

# Loop through each shot ID
for shot_id in shot_ids:
    path = Path(f"shots/{shot_id}.zarr")

    if not path.exists():
        print(f"Local path {path} not found.")
        continue

    store = zarr.DirectoryStore(str(path))
    store_list.append(store)

    try:
        zgroup = zarr.open(store, mode='r')
        zgroup_list.append(zgroup)
        print(f"Loaded shot ID {shot_id}")
        # Example: print available array keys
        # print(list(zgroup.array_keys()))
    except Exception as e:
        print(f"Failed to load shot ID {shot_id}: {e}")

Loaded shot ID 23447
Loaded shot ID 30005
Loaded shot ID 30021
Loaded shot ID 30421

# DOWNLOAD FROM S3 BUCKET
# store_list = []
# zgroup_list = []

# # Loop through each shot ID
# for shot_id in shot_ids:
#     url = f"s3://mast/level2/shots/{shot_id}.zarr"

#     store = zarr.storage.FSStore(fs=fs, url=url)
#     store_list.append(store)
#     # open or download the Zarr group
#     try:
#         zgroup_list.append(zarr.open(store, mode='r'))
#         print(f"Loaded shot ID {shot_id}")
#         # Do something with zgroup here, like listing arrays:
#         # print(list(zgroup.array_keys()))
#     except Exception as e:
#         print(f"Failed to load shot ID {shot_id}: {e}")

mirnov = [xr.open_zarr(store, group="magnetics") for store in store_list]
ds_list = [m['b_field_pol_probe_omv_voltage'].isel(b_field_pol_probe_omv_channel=1) for m in mirnov]

STFT or short time fourier transform

def plot_stft_spectrogram(    ds,    shot_id=None,    nperseg=2000,    nfft=2000,    tmin=0.1,    tmax=0.46,    fmax_kHz=50,    cmap='jet'):
    """
    Plot STFT spectrogram for a given xarray DataArray `ds`.

    Parameters:
    - ds: xarray.DataArray with a 'time_mirnov' coordinate.
    - shot_id: Optional shot ID for labeling.
    - nperseg: Number of points per STFT segment.
    - nfft: Number of FFT points.
    - tmin, tmax: Time range to display (seconds).
    - fmax_kHz: Max frequency to display (kHz).
    - cmap: Colormap name.
    """
    sample_rate = 1 / float(ds.time_mirnov[1] - ds.time_mirnov[0])
    f, t, Zxx = stft(ds.values, fs=int(sample_rate), nperseg=nperseg, nfft=nfft)

    fig, ax = plt.subplots(figsize=(15, 5))
    cax = ax.pcolormesh(
        t, f / 1000, np.abs(Zxx),
        shading='nearest',
        cmap=plt.get_cmap(cmap, 15),
        norm=LogNorm(vmin=1e-5)
    )
    ax.set_ylim(0, fmax_kHz)
    #ax.set_xlim(tmin, tmax)
    ax.set_ylabel('Frequency [kHz]')
    ax.set_xlabel('Time [sec]')
    title = f"STFT Spectrogram"
    if shot_id is not None:
        title += f" - Shot {shot_id}"
    ax.set_title(title)
    plt.colorbar(cax, ax=ax, label='Amplitude')
    plt.tight_layout()

[plot_stft_spectrogram(ds_list[i], shot_ids[i]) for i in range(len(ds_list))]

[None, None, None, None]

Thresholding based on percentage

def plot_amplitude_masking(ds, shot_id=None, nperseg=2000, nfft=2000,
                           sigma=1.0, apply_gaussian=False, apply_mask=True,
                           mask_percentile=60, use_percentage=True,
                           tmin=0.1, tmax=0.46, fmax_kHz=50, cmap='jet', apply_savgol_filter = False):
    """
    Plots the STFT spectrogram with optional Gaussian blur and masking. This is one function doing everything. No helper needed.

    Parameters:
    - ds: xarray.DataArray with 'time_mirnov'
    - shot_id: Optional shot ID
    - apply_gaussian: Whether to apply Gaussian blur
    - apply_mask: Whether to apply masking
    - mask_percentile: If use_percentage=True, keep top X% of points.
                       Else, mask values below the Xth percentile.
    - use_percentage: Use percentage thresholding instead of percentile
    """

    # Compute STFT
    sample_rate = 1 / float(ds.time_mirnov[1] - ds.time_mirnov[0])
    f, t, Zxx = stft(ds.values, fs=int(sample_rate), nperseg=nperseg, nfft=nfft)
    magnitude = np.abs(Zxx)  # Take magnitude of complex STFT

    # Optional Gaussian blur (for smoothing the spectrogram)
    if apply_gaussian:
        magnitude = gaussian_filter(magnitude, sigma=sigma)

    # savgol filter
    if apply_savgol_filter:
        # windows length Must be an odd integer.
        #
        window_length = max(5, min(11, len(f) // 3 * 2 + 1))
        magnitude = savgol_filter(magnitude, window_length=7, polyorder=2)

    # Clip negative values just in case blur introduced due to skewed data like sharp gradients
    magnitude = np.clip(magnitude, 0, None)

    # Apply masking
    if apply_mask:
        if use_percentage:
            # Flatten and sort finite values to find cutoff for top X% values
            valid = magnitude[np.isfinite(magnitude)].flatten()
            if valid.size > 0:
                sorted_vals = np.sort(valid)
                cut_index = int((1 - mask_percentile / 100) * len(sorted_vals))
                cutoff_value = sorted_vals[cut_index]
                # Mask all values below cutoff
                magnitude = np.where(magnitude >= cutoff_value, magnitude, np.nan)
        else:
            # Use standard percentile-based thresholding
            threshold = np.percentile(magnitude, mask_percentile)
            magnitude = np.where(magnitude >= threshold, magnitude, np.nan)

    # save a copy of the segmented spectrogram
    segmented_stft = magnitude.copy()


    # Skip if everything got masked (to avoid plotting empty images)
    if not np.any(np.isfinite(magnitude)):
        print(f"Shot {shot_id} — all values masked. Skipping plot.")
        return

    # Plot the spectrogram
    fig, ax = plt.subplots(figsize=(15, 5))
    cax = ax.pcolormesh(
        t, f / 1000, magnitude,
        shading='nearest',
        cmap=plt.get_cmap(cmap, 15),
        norm=LogNorm(vmin=1e-5)
    )
    ax.set_ylim(0, fmax_kHz)
    #ax.set_xlim(tmin, tmax)
    ax.set_ylabel('Frequency [kHz]')
    ax.set_xlabel('Time [sec]')
    title = f"Filtered STFT - Shot {shot_id}" if shot_id else "Filtered STFT"
    ax.set_title(title)
    plt.colorbar(cax, ax=ax, label='Amplitude')
    plt.tight_layout()

    return t, f, segmented_stft, Zxx

results = [plot_amplitude_masking(ds_list[i], shot_ids[i], mask_percentile=1, sigma=0.9, apply_gaussian=False, apply_savgol_filter=True) for i in range(len(ds_list))]
t_list, f_list, seg_list, Zxx_list = zip(*results)

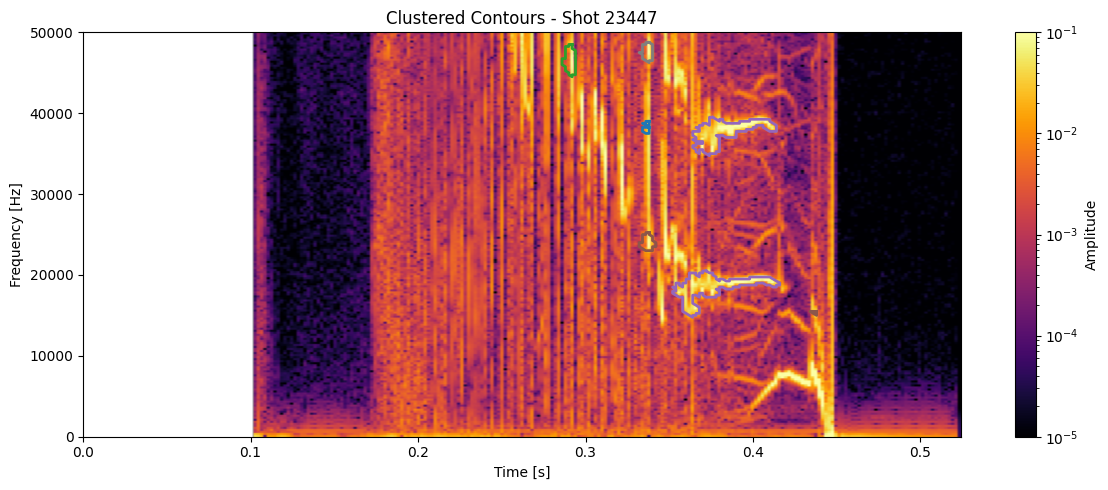

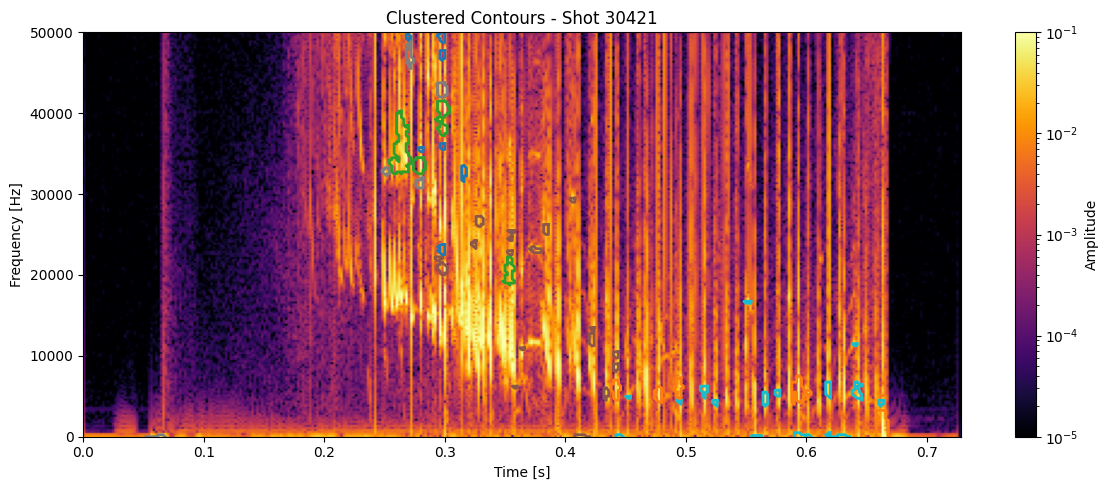

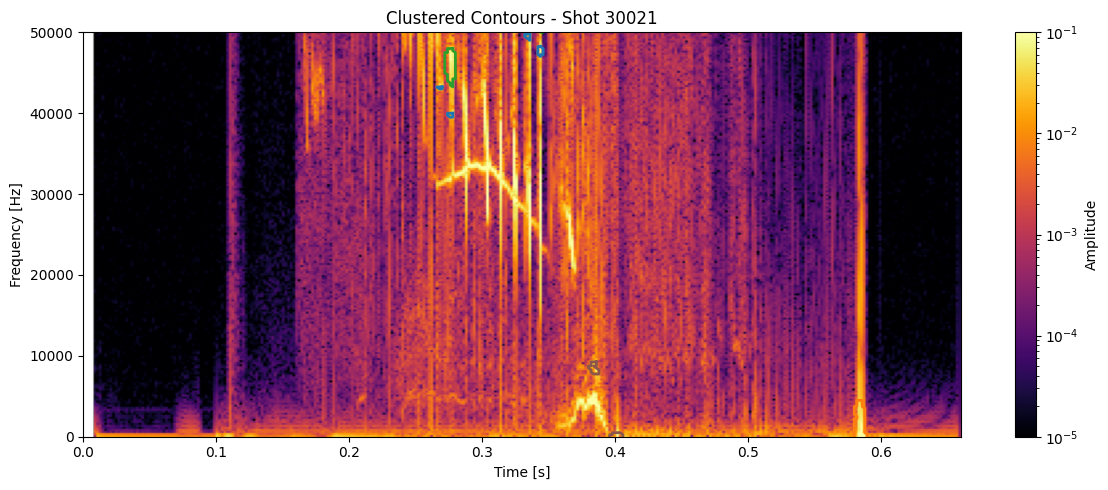

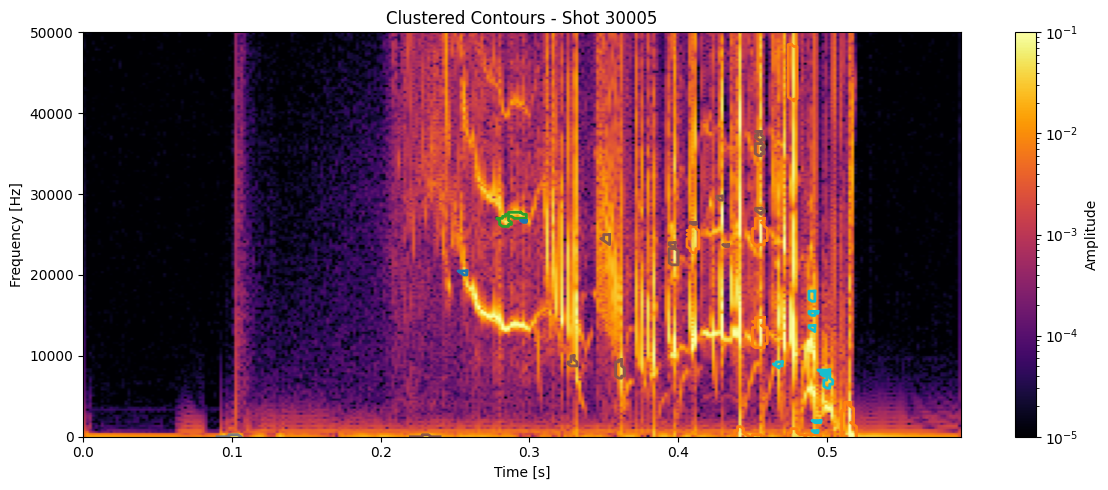

Contour detection

def plot_spectrogram_with_contours(Zxx, f, t, contours, shot_id=None, vmin=1e-5):

    f_kHz = f / 1000

    fig, ax = plt.subplots(figsize=(12, 5))
    cax = ax.pcolormesh(t, f_kHz, np.abs(Zxx), shading='nearest',
                        norm=LogNorm(vmin=vmin), cmap='jet')

    for contour in contours:
        ax.plot(t[np.clip(contour[:, 1].astype(int), 0, len(t) - 1)],
                f_kHz[np.clip(contour[:, 0].astype(int), 0, len(f) - 1)],
                color='black', lw=0.5)


    ax.set_ylim(0, 70)
    #ax.set_xlim(0.1, 0.46)
    ax.set_xlabel('Time [sec]')
    ax.set_ylabel('Frequency [kHz]')
    title = "STFT with Contour Overlay"
    if shot_id is not None:
        title += f" - Shot {shot_id}"
    ax.set_title(title)
    plt.colorbar(cax, ax=ax, label="Amplitude")
    plt.grid(True)
    plt.tight_layout()

for i in range(len(ds_list)):
    # Use masked STFT (seg_list[i]) to extract binary mask
    binary_mask = np.isfinite(seg_list[i]).astype(float)
    # Get contours at 0.5 (standard threshold for binary masks)
    contours = measure.find_contours(binary_mask, level=0.5)
    plot_spectrogram_with_contours(seg_list[i], f_list[i], t_list[i], contours, shot_id=shot_ids[i])

Extract information about each contour

def extract_contour_features(contour, t, f, Zxx):
    """Extract features from a single contour."""
    time_idx = np.clip(contour[:, 1].astype(int), 0, len(t) - 1)
    freq_idx = np.clip(contour[:, 0].astype(int), 0, len(f) - 1)

    times = t[time_idx]
    freqs = f[freq_idx]# / 1000  # in kHz
    amps = np.abs(Zxx[freq_idx, time_idx])

    # Handle degenerate contours
    if len(times) < 2:
        return None

    # Features
    duration = times.max() - times.min()
    freq_span = freqs.max() - freqs.min()
    slope = np.polyfit(times, freqs, 1)[0]
    avg_amp = np.mean(amps)
    max_amp = np.max(amps)

    return {
        'duration': duration,
        'freq_span': freq_span,
        'slope': slope,
        'avg_amp': avg_amp,
        'max_amp': max_amp,
        'start_time': times.min(),
        'end_time': times.max(),
        'start_freq': freqs[0],
        'end_freq': freqs[-1],
        'length': len(times),
    }

# Initialize a list to collect all feature DataFrames
all_feature_dfs = []
# Extract features from all contours
# Loop through each shot to extract contour features
for i in range(len(ds_list)):
    #  Binary mask from segmented STFT (NaNs were introduced during masking)
    binary_mask = np.isfinite(seg_list[i]).astype(float)

    #  Detect contours at 0.5 level (standard threshold for binary masks)
    contours = measure.find_contours(binary_mask, level=0.5)

    # #  Extract features for each contour using helper
    # features = [extract_contour_features(c, t_list[i], f_list[i], Zxx_list[i]) for c in contours]

    # #  Filter out any invalid results (None entries)
    # features = [f for f in features if f is not None]

    # for f in features:
    #     f['shot_id'] = shot_ids[i]  # Add shot ID to each feature dict

    features = []
    for j, c in enumerate(contours):  # add j for contour index
        feat = extract_contour_features(c, t_list[i], f_list[i], Zxx_list[i])
        if feat is not None:
            feat['shot_id'] = shot_ids[i]
            feat['contour_idx'] = j
            features.append(feat)

    all_feature_dfs.extend(features)

# Concatenate into a single DataFrame
df_all = pd.DataFrame(all_feature_dfs)

df_all.head()

	duration	freq_span	slope	avg_amp	max_amp	start_time	end_time	start_freq	end_freq	length	shot_id	contour_idx
0	0.004	0.000	0.000000	0.023028	0.024961	0.116000	0.120000	0.0	0.0	4	23447	0
1	0.008	0.000	0.000000	0.025997	0.033559	0.178000	0.186000	0.0	0.0	6	23447	1
2	0.004	0.000	0.000000	0.021432	0.024144	0.198000	0.202000	0.0	0.0	4	23447	2
3	0.008	0.000	0.000000	0.021969	0.025508	0.208000	0.216000	0.0	0.0	6	23447	3
4	0.048	8999.982	-85343.955436	0.012600	0.110189	0.404001	0.452001	0.0	0.0	148	23447	4

df_clean = df_all.dropna()

###### More filtering needed. A lot of garbage contour still left #######
df_clean = df_clean[(df_clean['duration'] > 0.004) &
                    (df_clean['avg_amp'] > 1e-4) &
                    (df_clean['length'] >= 5)&
                    (df_clean['freq_span'] > 0.1) &
                    (np.abs(df_clean['slope']) < 5e4)]

# select all rows with shot_id 23447
df_clean[df_clean['shot_id'] == 23447].head()

	duration	freq_span	slope	avg_amp	max_amp	start_time	end_time	start_freq	end_freq	length	shot_id	contour_idx
7	0.064	5749.9885	30710.906079	0.023135	0.156930	0.352001	0.416001	20499.9590	20499.9590	145	23447	7
8	0.004	499.9990	-23026.223684	0.030197	0.046078	0.434001	0.438001	15499.9690	15499.9690	9	23447	8
11	0.010	2249.9955	-5161.559246	0.013658	0.051164	0.332001	0.342001	25249.9495	25249.9495	29	23447	11
19	0.050	4749.9905	43065.864199	0.021728	0.149185	0.364001	0.414001	39499.9210	39499.9210	121	23447	19
21	0.004	749.9985	4166.650000	0.031503	0.057582	0.334001	0.338001	38249.9235	38249.9235	11	23447	21

len(df_clean)

261

df_clean.describe()

	duration	freq_span	slope	avg_amp	max_amp	start_time	end_time	start_freq	end_freq	length	shot_id	contour_idx
count	261.000000	261.000000	261.000000	261.000000	261.000000	261.000000	261.000000	261.000000	261.000000	261.000000	261.000000	261.00000
mean	0.006690	1160.917218	-864.429527	0.022488	0.049807	0.345472	0.352162	57955.822785	57955.822785	17.896552	29098.823755	78.94636
std	0.005537	1244.587927	19341.970055	0.006750	0.015256	0.091565	0.091794	34317.698029	34317.698029	17.018113	2414.595628	52.03258
min	0.004000	249.999500	-48348.863208	0.005850	0.024897	0.052000	0.068000	0.000000	0.000000	7.000000	23447.000000	0.00000
25%	0.004000	499.999000	-10445.163699	0.018000	0.039058	0.294001	0.302001	25999.948000	25999.948000	9.000000	30005.000000	38.00000
50%	0.006000	749.998500	-3348.200893	0.022258	0.049379	0.320001	0.324001	63749.872500	63749.872500	13.000000	30021.000000	68.00000
75%	0.008000	1249.997500	8928.535714	0.026734	0.057717	0.380001	0.384001	87999.824000	87999.824000	19.000000	30021.000000	108.00000
max	0.064000	7749.984500	48275.668966	0.038196	0.156930	0.660001	0.668001	138749.722500	138749.722500	145.000000	30421.000000	209.00000

PCA

features_for_pca = df_clean[[
    'duration',
    'freq_span',
    'slope',
    'avg_amp',
    'max_amp',
    'length',
    'start_time',
    'end_time',
    'start_freq',
    'end_freq'
    # add 'start_time', 'end_time', etc. if you want temporal position in clustering
]]

X_scaled = StandardScaler().fit_transform(features_for_pca)
pca = PCA(n_components=2)
X_pca = pca.fit_transform(X_scaled)

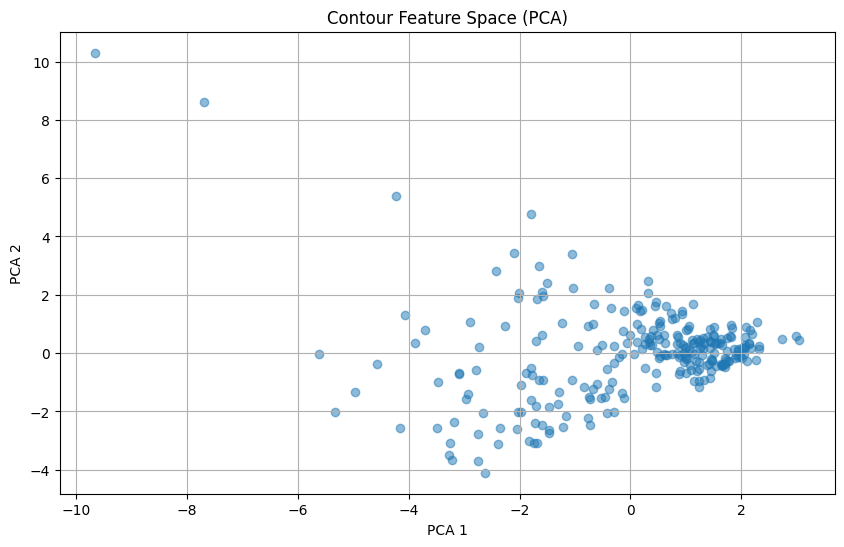

plt.figure(figsize=(10, 6))
plt.scatter(X_pca[:, 0], X_pca[:, 1], alpha=0.5)
plt.xlabel("PCA 1")
plt.ylabel("PCA 2")
plt.title("Contour Feature Space (PCA)")
plt.grid(True)

pca.components_  # Rows are PCs, columns are original features

array([[-0.30448631, -0.33932833, -0.04914475,  0.2417678 , -0.2029942 ,
        -0.35094409, -0.34756518, -0.36506315,  0.39549744,  0.39549744],
       [ 0.37581452,  0.34228755,  0.11716779, -0.03324786,  0.36578401,
         0.43375828, -0.36790736, -0.34431705,  0.27469504,  0.27469504]])

Simple clustering

#from sklearn.preprocessing import StandardScaler
from sklearn.cluster import KMeans

n_clusters = 8
kmeans = KMeans(n_clusters=n_clusters, random_state=42)
cluster_labels = kmeans.fit_predict(X_pca)

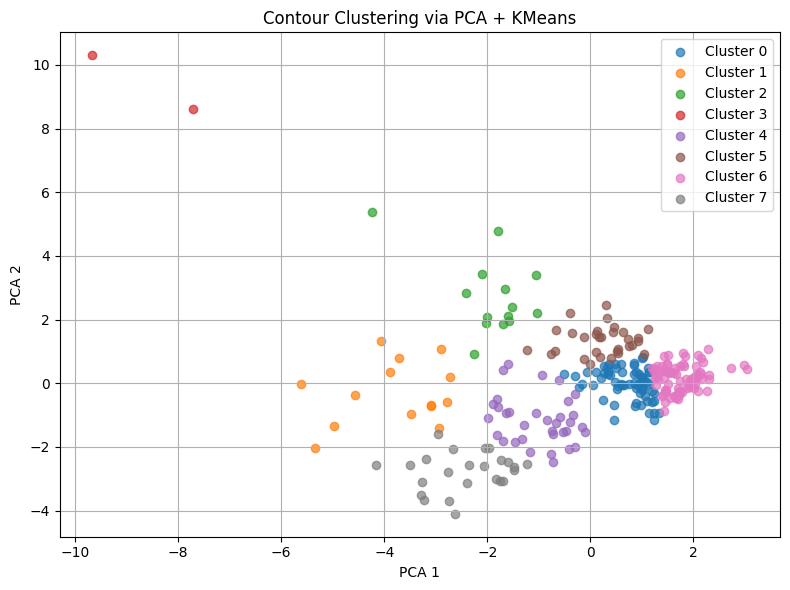

plt.figure(figsize=(8, 6))
for i in range(n_clusters):
    mask = cluster_labels == i
    plt.scatter(X_pca[mask, 0], X_pca[mask, 1], label=f"Cluster {i}", alpha=0.7)

plt.xlabel("PCA 1")
plt.ylabel("PCA 2")
plt.title("Contour Clustering via PCA + KMeans")
plt.legend()
plt.grid(True)
plt.tight_layout()

df_clean['cluster'] = cluster_labels

num_clusters = df_clean['cluster'].nunique()
colors = cm.get_cmap('tab10', num_clusters)

for shot_id in df_clean['shot_id'].unique():
    # Pull the STFT and metadata for this shot
    idx = shot_ids.index(shot_id)
    #Z = ds_list[idx]
    Z = np.abs(Zxx_list[idx])
    t = t_list[idx]
    f = f_list[idx]

    # Get contours and cluster labels for this shot
    df_shot = df_clean[df_clean['shot_id'] == shot_id]
    contours = measure.find_contours(np.isfinite(seg_list[idx]).astype(float), 0.5)

    plt.figure(figsize=(12, 5))
    plt.imshow(
        np.abs(Zxx_list[idx]),
        aspect='auto', origin='lower',
        extent=[t[0], t[-1], f[0], f[-1]],
        cmap='inferno', norm=LogNorm(vmin=1e-5, vmax=1e-1)
    )
    # for _, row in df_shot.iterrows():
    #     # Reconstruct a line segment if you still have contours
    #     #c = measure.find_contours(np.isfinite(seg_list[idx]).astype(float), 0.5)[int(row.name)]
    #     c = contours[int(row['contour_idx'])]
    #     plt.plot(t[c[:, 1].astype(int)], f[c[:, 0].astype(int)],
    #              color=colors(row['cluster']), linewidth=2)

    for _, row in df_shot.iterrows():
        contour = contours[int(row['contour_idx'])]     # this links to clustering
        t_pts = t[contour[:, 1].astype(int)]
        f_pts = f[contour[:, 0].astype(int)]
        plt.plot(t_pts, f_pts, color=colors(int(row['cluster'])), linewidth=2)

    plt.colorbar(label='Amplitude')
    plt.title(f"Clustered Contours - Shot {shot_id}")
    plt.xlabel("Time [s]")
    plt.ylabel("Frequency [Hz]")
    plt.ylim(0, 50000)
    plt.tight_layout()
    plt.show()

/tmp/ipykernel_13399/3660331428.py:2: MatplotlibDeprecationWarning: The get_cmap function was deprecated in Matplotlib 3.7 and will be removed in 3.11. Use ``matplotlib.colormaps[name]`` or ``matplotlib.colormaps.get_cmap()`` or ``pyplot.get_cmap()`` instead.
  colors = cm.get_cmap('tab10', num_clusters)
