Denoising#
import zarr
import zarr.storage
import fsspec
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
from scipy.signal import stft
from scipy.signal import find_peaks
from collections import defaultdict
from scipy.ndimage import median_filter
# List of shot IDs
shot_ids = [23447, 30005, 30021, 30421] # Add more as needed
# S3 endpoint
endpoint = "https://s3.echo.stfc.ac.uk"
fs = fsspec.filesystem(
protocol='simplecache',
target_protocol="s3",
target_options=dict(anon=True, endpoint_url=endpoint)
)
store_list = []
zgroup_list = []
# Loop through each shot ID
for shot_id in shot_ids:
url = f"s3://mast/level2/shots/{shot_id}.zarr"
store = zarr.storage.FSStore(fs=fs, url=url)
store_list.append(store)
# open or download the Zarr group
try:
zgroup_list.append(zarr.open(store, mode='r'))
print(f"Loaded shot ID {shot_id}")
# Do something with zgroup here, like listing arrays:
# print(list(zgroup.array_keys()))
except Exception as e:
print(f"Failed to load shot ID {shot_id}: {e}")
Loaded shot ID 23447
Loaded shot ID 30005
Loaded shot ID 30021
Loaded shot ID 30421
mirnov = [xr.open_zarr(store, group="magnetics") for store in store_list]
ds_list = [m['b_field_pol_probe_omv_voltage'].isel(b_field_pol_probe_omv_channel=1) for m in mirnov]
def plot_stft_spectrogram( ds, shot_id=None, nperseg=2000, nfft=2000, tmin=0.1, tmax=0.46, fmax_kHz=50, cmap='jet'):
"""
Plot STFT spectrogram for a given xarray DataArray `ds`.
Parameters:
- ds: xarray.DataArray with a 'time_mirnov' coordinate.
- shot_id: Optional shot ID for labeling.
- nperseg: Number of points per STFT segment.
- nfft: Number of FFT points.
- tmin, tmax: Time range to display (seconds).
- fmax_kHz: Max frequency to display (kHz).
- cmap: Colormap name.
"""
sample_rate = 1 / float(ds.time_mirnov[1] - ds.time_mirnov[0])
f, t, Zxx = stft(ds.values, fs=int(sample_rate), nperseg=nperseg, nfft=nfft)
fig, ax = plt.subplots(figsize=(15, 5))
cax = ax.pcolormesh(
t, f / 1000, np.abs(Zxx),
shading='nearest',
cmap=plt.get_cmap(cmap, 15),
norm=LogNorm(vmin=1e-5)
)
ax.set_ylim(0, fmax_kHz)
ax.set_xlim(tmin, tmax)
ax.set_ylabel('Frequency [kHz]')
ax.set_xlabel('Time [sec]')
title = f"STFT Spectrogram"
if shot_id is not None:
title += f" - Shot {shot_id}"
ax.set_title(title)
plt.colorbar(cax, ax=ax, label='Amplitude')
plt.tight_layout()
[plot_stft_spectrogram(ds_list[i], shot_ids[i]) for i in range(len(ds_list))]
[None, None, None, None]
def extract_ridges_from_stft(Zxx, f, t, amp_thresh=1e-3, delta_f_max=3000, min_ridge_len=10):
"""
Track ridges from the STFT matrix by linking peaks across time with constraints.
Parameters:
- Zxx: STFT complex matrix (f x t)
- f: frequency array (Hz)
- t: time array (sec)
- amp_thresh: minimum amplitude to consider a peak
- delta_f_max: max frequency jump allowed (Hz)
- min_ridge_len: minimum number of points for a valid ridge
Returns:
- List of ridges, each a list of (time, freq, amplitude)
"""
num_t = len(t)
num_f = len(f)
# Convert to magnitude
mag = np.abs(Zxx)
mag_filtered = median_filter(mag, size=(5, 3)) # (freq_window, time_window)
mag = mag_filtered
amp_thresh = np.quantile(mag, 0.995) # top 0.5% as candidate peaks
# detect peaks in each time slice
peaks_by_time = []
for i in range(num_t):
peaks, _ = find_peaks(mag[:, i], height=amp_thresh)
peaks_by_time.append([(f[p], mag[p, i]) for p in peaks])
# ridge linking
ridges = []
active_tracks = []
for i in range(num_t):
current_peaks = peaks_by_time[i]
new_tracks = []
for freq, amp in current_peaks:
matched = False
for track in active_tracks:
# if abs(freq - track[-1][1]) < delta_f_max:
# track.append((t[i], freq, amp))
prev_freqs = [pt[1] for pt in track[-2:]]
if len(prev_freqs) == 2:
slope = prev_freqs[1] - prev_freqs[0]
f_pred = prev_freqs[1] + slope
if abs(freq - f_pred) < delta_f_max:
track.append((t[i], freq, amp))
matched = True
# matched = True
break
if not matched:
new_tracks.append([(t[i], freq, amp)])
# Keep long enough tracks
active_tracks = [trk for trk in active_tracks if len(trk) >= min_ridge_len] + new_tracks
# Final cleanup
ridges = [trk for trk in ridges if len(trk) >= min_ridge_len and np.mean([a for _, _, a in trk]) > 0.005]
#ridges = [trk for trk in active_tracks if len(trk) >= min_ridge_len]
return ridges
# Plotting Function
def plot_ridges_on_spectrogram(ridges, ax, color='white'):
for ridge in ridges:
t_vals, f_vals, _ = zip(*ridge)
ax.plot(t_vals, np.array(f_vals) / 1000, color=color, linewidth=1)
def extract_clean_ridges_from_stft(
Zxx, f, t,
amp_thresh=1e-3,
delta_f_max=3000,
max_gap=2,
min_ridge_len=10
):
"""
Improved ridge tracking with slope prediction, amplitude continuity,
and peak ownership to avoid mode jumping.
Parameters:
- Zxx: STFT (f x t) complex matrix
- f: frequency array (Hz)
- t: time array (sec)
- amp_thresh: minimum amplitude to consider a peak
- delta_f_max: max frequency jump (Hz)
- max_gap: maximum time steps a track can go without a match
- min_ridge_len: minimum track length to keep
Returns:
- List of ridges: each is a list of (time, freq, amp)
"""
mag = np.abs(Zxx)
num_t = len(t)
num_f = len(f)
# Step 1: Detect peaks
peaks_by_time = []
for i in range(num_t):
peaks, props = find_peaks(mag[:, i], height=amp_thresh)
peak_data = [(f[p], mag[p, i]) for p in peaks]
peaks_by_time.append(peak_data)
# Step 2: Track structures
active_tracks = []
finished_tracks = []
for i in range(num_t):
used_peaks = set()
new_tracks = []
# Try to extend each active track
for track in active_tracks:
if len(track['data']) < 2:
f_pred = track['data'][-1][1]
else:
f_pred = 2 * track['data'][-1][1] - track['data'][-2][1]
best_match = None
best_cost = float('inf')
for j, (f_cand, amp_cand) in enumerate(peaks_by_time[i]):
if j in used_peaks:
continue
if abs(f_cand - f_pred) < delta_f_max:
amp_prev = track['data'][-1][2]
cost = abs(f_cand - f_pred) + 1000 * abs(amp_cand - amp_prev)
if cost < best_cost:
best_cost = cost
best_match = (j, f_cand, amp_cand)
if best_match is not None:
j, f_cand, amp_cand = best_match
track['data'].append((t[i], f_cand, amp_cand))
track['last_seen'] = i
used_peaks.add(j)
new_tracks.append(track)
elif i - track['last_seen'] <= max_gap:
# Continue track with no match
new_tracks.append(track)
else:
if len(track['data']) >= min_ridge_len:
finished_tracks.append(track['data'])
# Start new tracks from unmatched peaks
for j, (f_cand, amp_cand) in enumerate(peaks_by_time[i]):
if j not in used_peaks:
new_tracks.append({
'data': [(t[i], f_cand, amp_cand)],
'last_seen': i
})
active_tracks = new_tracks
# Append remaining active tracks
for track in active_tracks:
if len(track['data']) >= min_ridge_len:
finished_tracks.append(track['data'])
return finished_tracks
nperseg = 2000
nfft = 2000
for i, ds in enumerate(ds_list):
print(f"Processing signal {i+1}/{len(ds_list)}")
# Compute sample rate
sample_rate = 1 / float(ds.time_mirnov[1] - ds.time_mirnov[0])
# Compute STFT
f, t, Zxx = stft(ds.values, fs=int(sample_rate), nperseg=nperseg, nfft=nfft)
# Extract ridges
ridges = extract_clean_ridges_from_stft(Zxx, f, t)
# Print ridge count
print(f"→ Number of ridges detected: {len(ridges)}")
# Plot
fig, ax = plt.subplots(figsize=(15, 5))
cax = ax.pcolormesh(
t, f / 1000, np.abs(Zxx),
shading='nearest',
cmap=plt.get_cmap('jet', 15),
norm=LogNorm(vmin=1e-5)
)
ax.set_ylim(0, 50)
ax.set_xlim(0.1, 0.46)
ax.set_ylabel('Frequency [kHz]')
ax.set_xlabel('Time [sec]')

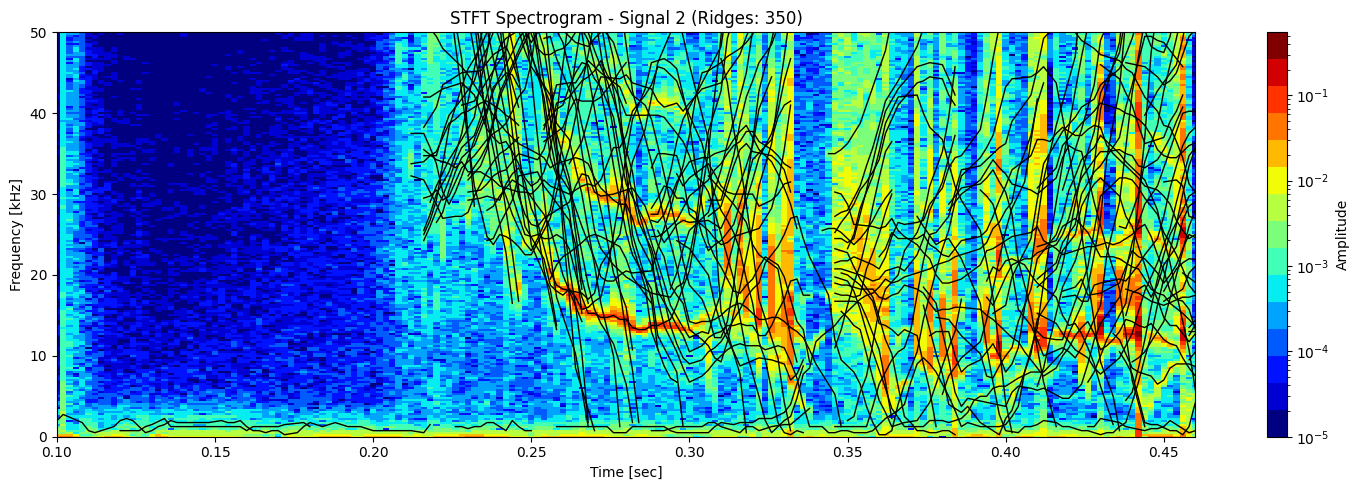

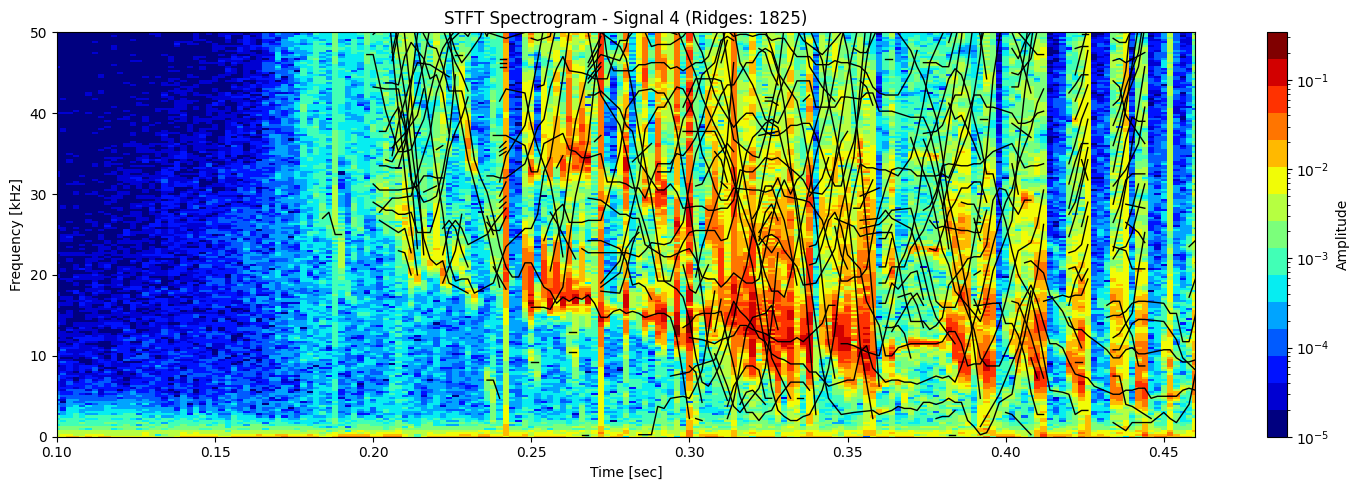

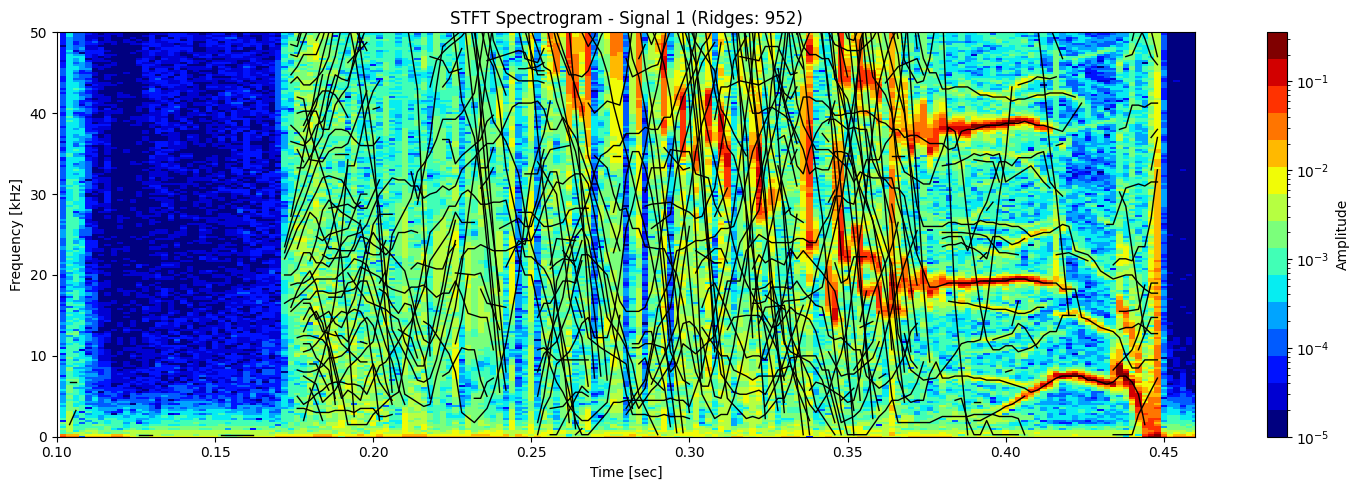

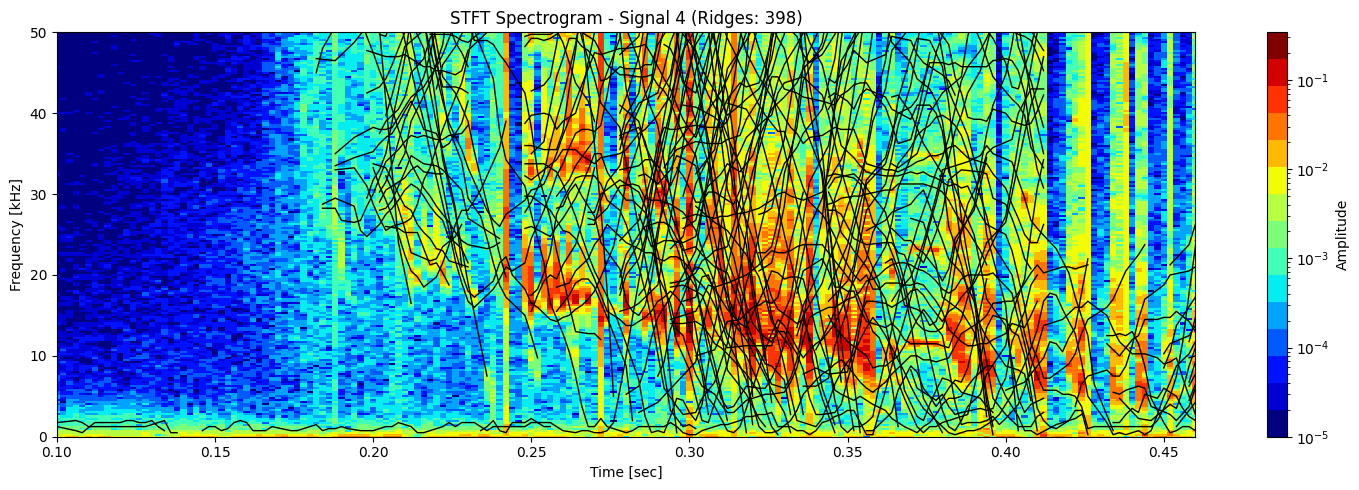

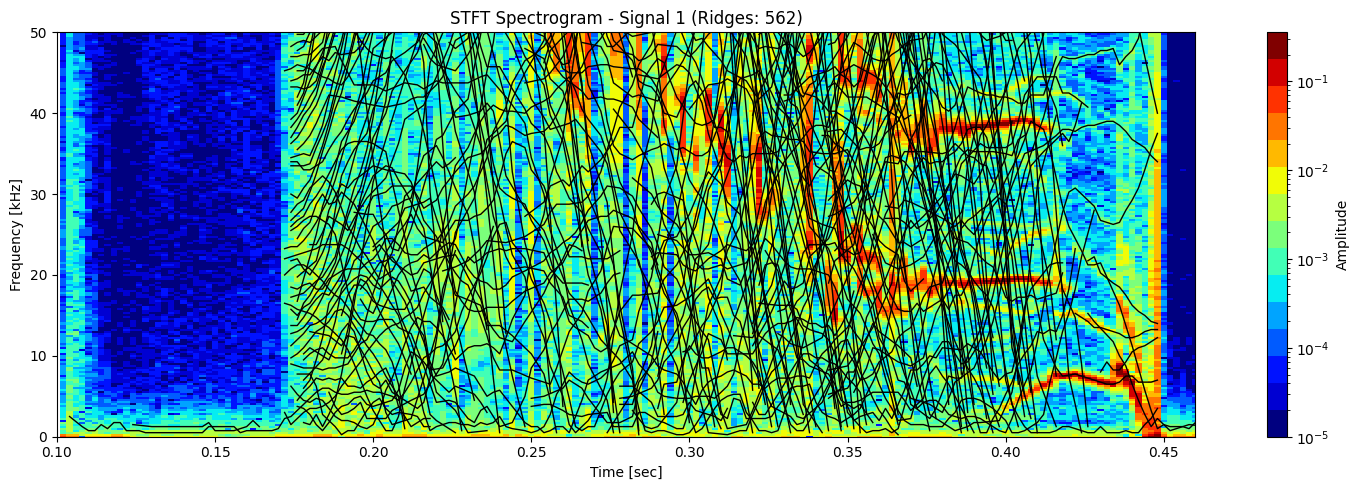

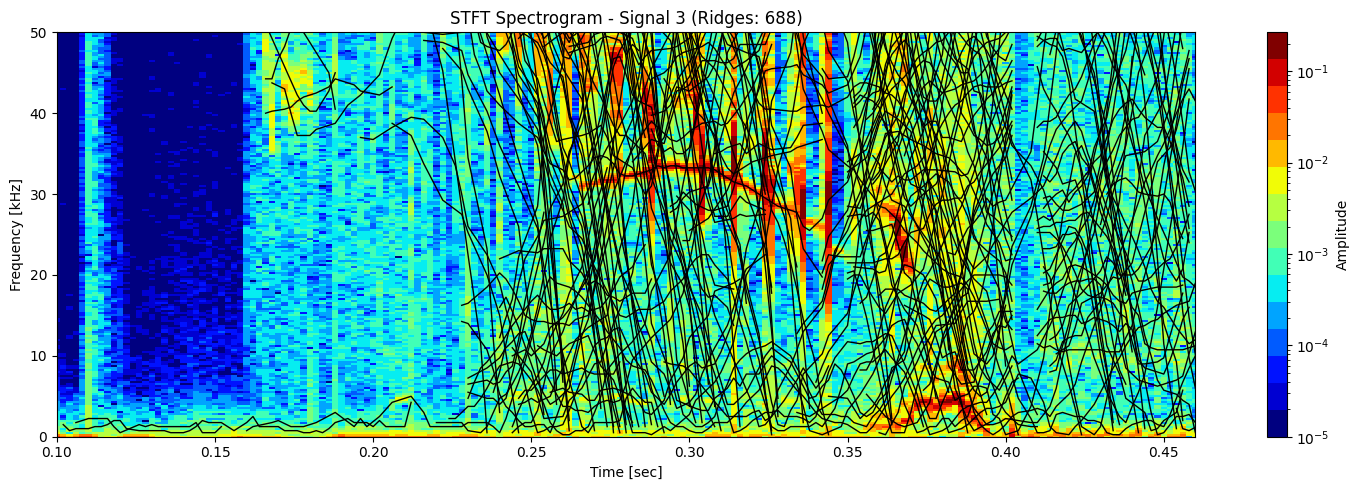

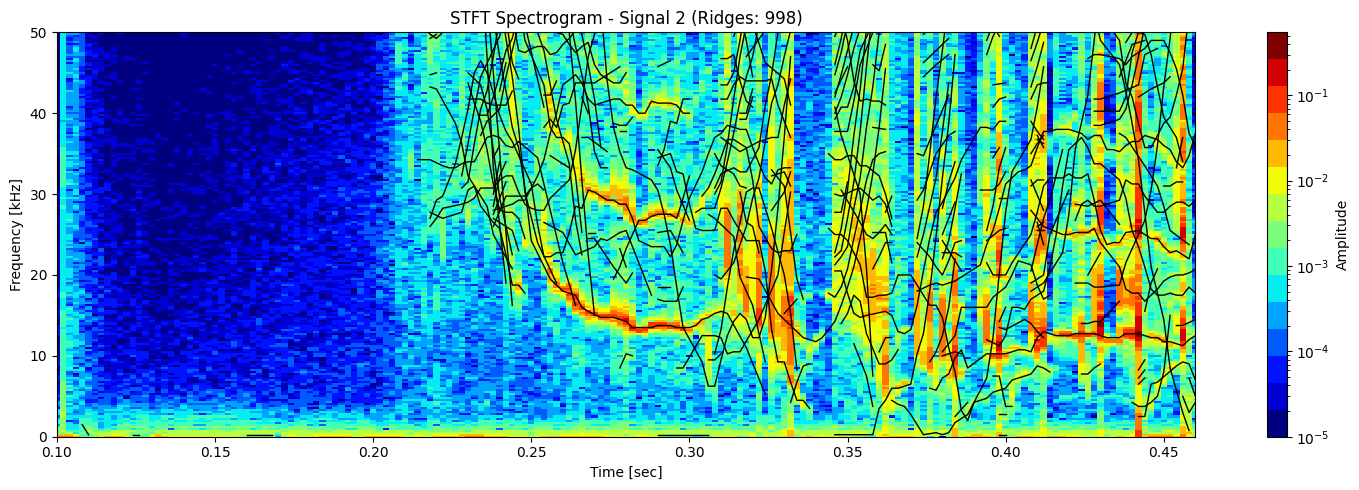

ax.set_title(f"STFT Spectrogram - Signal {i+1} (Ridges: {len(ridges)})")
fig.colorbar(cax, ax=ax, label='Amplitude')
plot_ridges_on_spectrogram(ridges, ax, color='black')
plt.tight_layout()
plt.show()
Processing signal 1/4
→ Number of ridges detected: 562
Processing signal 2/4
→ Number of ridges detected: 350
Processing signal 3/4
→ Number of ridges detected: 688
Processing signal 4/4
→ Number of ridges detected: 398
Second try#
def extract_clean_ridges_from_stft(
Zxx, f, t,
amp_thresh=1e-3,
delta_f_max=3000,
max_gap=2,
min_ridge_len=10
):
"""
Improved ridge tracking with slope prediction, amplitude continuity,
and peak ownership to avoid mode jumping.
Parameters:
- Zxx: STFT (f x t) complex matrix
- f: frequency array (Hz)
- t: time array (sec)
- amp_thresh: minimum amplitude to consider a peak
- delta_f_max: max frequency jump (Hz)
- max_gap: maximum time steps a track can go without a match
- min_ridge_len: minimum track length to keep
Returns:
- List of ridges: each is a list of (time, freq, amp)
"""
mag = np.abs(Zxx)
num_t = len(t)
num_f = len(f)
# Detect peaks
peaks_by_time = []
for i in range(num_t):
peaks, props = find_peaks(mag[:, i], height=amp_thresh)
peak_data = [(f[p], mag[p, i]) for p in peaks]
peaks_by_time.append(peak_data)
# Track structures
active_tracks = []
finished_tracks = []
for i in range(num_t):
used_peaks = set()
new_tracks = []
# Try to extend each active track
for track in active_tracks:
if len(track['data']) < 2:
f_pred = track['data'][-1][1]
else:
f_pred = 2 * track['data'][-1][1] - track['data'][-2][1]
best_match = None
best_cost = float('inf')
for j, (f_cand, amp_cand) in enumerate(peaks_by_time[i]):
if j in used_peaks:
continue
if abs(f_cand - f_pred) < delta_f_max:
amp_prev = track['data'][-1][2]
cost = abs(f_cand - f_pred) + 1000 * abs(amp_cand - amp_prev)
if cost < best_cost:
best_cost = cost
best_match = (j, f_cand, amp_cand)
if best_match is not None:
j, f_cand, amp_cand = best_match
track['data'].append((t[i], f_cand, amp_cand))
track['last_seen'] = i
used_peaks.add(j)
new_tracks.append(track)
elif i - track['last_seen'] <= max_gap:
# Continue track with no match
new_tracks.append(track)
else:
if len(track['data']) >= min_ridge_len:
finished_tracks.append(track['data'])
# Start new tracks from unmatched peaks
for j, (f_cand, amp_cand) in enumerate(peaks_by_time[i]):
if j not in used_peaks:
new_tracks.append({
'data': [(t[i], f_cand, amp_cand)],
'last_seen': i
})
active_tracks = new_tracks
# Append remaining active tracks
for track in active_tracks:
if len(track['data']) >= min_ridge_len:
finished_tracks.append(track['data'])
return finished_tracks
def extract_denoised_ridges_from_stft(
Zxx, f, t,
quantile_thresh=0.995,
delta_f_max=3000,
max_gap=2,
min_ridge_len=10,
min_avg_amp=0.005,
median_filter_size=(5, 3)
):
"""
Robust ridge tracker with spectrogram denoising, adaptive thresholding,
slope prediction, and track filtering.
Parameters:
- Zxx: STFT complex matrix (f x t)
- f: frequency array (Hz)
- t: time array (sec)
- quantile_thresh: amplitude threshold as quantile (e.g. 0.995)
- delta_f_max: max frequency jump (Hz)
- max_gap: max allowed time steps without match
- min_ridge_len: minimum number of points for a valid ridge
- min_avg_amp: minimum average amplitude for a valid ridge
- median_filter_size: (freq_window, time_window) for denoising
Returns:
- List of ridges, each a list of (time, freq, amp)
"""
mag = np.abs(Zxx)
# Denoise spectrogram using median filtering
mag = median_filter(mag, size=median_filter_size)
# Adaptive amplitude threshold
amp_thresh = np.quantile(mag, quantile_thresh)
num_t = len(t)
peaks_by_time = []
for i in range(num_t):
peaks, _ = find_peaks(mag[:, i], height=amp_thresh)
peak_data = [(f[p], mag[p, i]) for p in peaks]
peaks_by_time.append(peak_data)
# Ridge tracking
active_tracks = []
finished_tracks = []
for i in range(num_t):
used_peaks = set()
new_tracks = []
for track in active_tracks:
if len(track['data']) < 2:
f_pred = track['data'][-1][1]
else:
f_pred = 2 * track['data'][-1][1] - track['data'][-2][1]
best_match = None
best_cost = float('inf')
for j, (f_cand, amp_cand) in enumerate(peaks_by_time[i]):
if j in used_peaks:
continue
if abs(f_cand - f_pred) < delta_f_max:
amp_prev = track['data'][-1][2]
cost = abs(f_cand - f_pred) + 1000 * abs(amp_cand - amp_prev)
if cost < best_cost:
best_cost = cost
best_match = (j, f_cand, amp_cand)
if best_match is not None:
j, f_cand, amp_cand = best_match
track['data'].append((t[i], f_cand, amp_cand))
track['last_seen'] = i
used_peaks.add(j)
new_tracks.append(track)
elif i - track['last_seen'] <= max_gap:
new_tracks.append(track)
else:
finished_tracks.append(track['data'])
# Start new tracks from unmatched peaks
for j, (f_cand, amp_cand) in enumerate(peaks_by_time[i]):
if j not in used_peaks:
new_tracks.append({
'data': [(t[i], f_cand, amp_cand)],
'last_seen': i
})
active_tracks = new_tracks
# Finalize all
all_tracks = finished_tracks + [trk['data'] for trk in active_tracks]
# Filter out junk
final_ridges = [
trk for trk in all_tracks
if len(trk) >= min_ridge_len and np.mean([a for _, _, a in trk]) >= min_avg_amp
]
return final_ridges
# def plot_ridges_on_spectrogram(ridges, ax, cmap='tab10'):
# import matplotlib.pyplot as plt
# colors = plt.get_cmap(cmap)(np.linspace(0, 1, len(ridges)))
# for idx, ridge in enumerate(ridges):
# if len(ridge) >= 2:
# t_vals, f_vals, _ = zip(*ridge)
# ax.plot(t_vals, np.array(f_vals) / 1000, color=colors[idx], linewidth=1.5)
nperseg = 2000
nfft = 2000
for i, ds in enumerate(ds_list):
print(f"Processing signal {i+1}/{len(ds_list)}")
# Compute sample rate
sample_rate = 1 / float(ds.time_mirnov[1] - ds.time_mirnov[0])
# Compute STFT
f, t, Zxx = stft(ds.values, fs=int(sample_rate), nperseg=nperseg, nfft=nfft)
# Extract ridges
ridges = extract_denoised_ridges_from_stft(Zxx, f, t)
# ridges = extract_denoised_ridges_from_stft(
# Zxx, f, t,
# quantile_thresh=0.98,
# delta_f_max=4000,
# max_gap=2,
# min_ridge_len=5,
# min_avg_amp=0.002,
# median_filter_size=(7, 5)
# )
# ridges = extract_denoised_ridges_from_stft(
# Zxx, f, t,
# quantile_thresh=0.975, # lower threshold even more
# delta_f_max=5000, # more forgiving frequency jump
# max_gap=3, # allow skipping over a few bad time slices
# min_ridge_len=4, # allow shorter ridges
# min_avg_amp=0.0015, # keep lower amplitude tracks
# median_filter_size=(5, 3) # can stay as-is
# )
# Print ridge count
print(f"→ Number of ridges detected: {len(ridges)}")
# Plot
fig, ax = plt.subplots(figsize=(15, 5))
cax = ax.pcolormesh(
t, f / 1000, np.abs(Zxx),
shading='nearest',
cmap=plt.get_cmap('jet', 15),
norm=LogNorm(vmin=1e-5)
)
ax.set_ylim(0, 50)
ax.set_xlim(0.1, 0.46)
ax.set_ylabel('Frequency [kHz]')
ax.set_xlabel('Time [sec]')

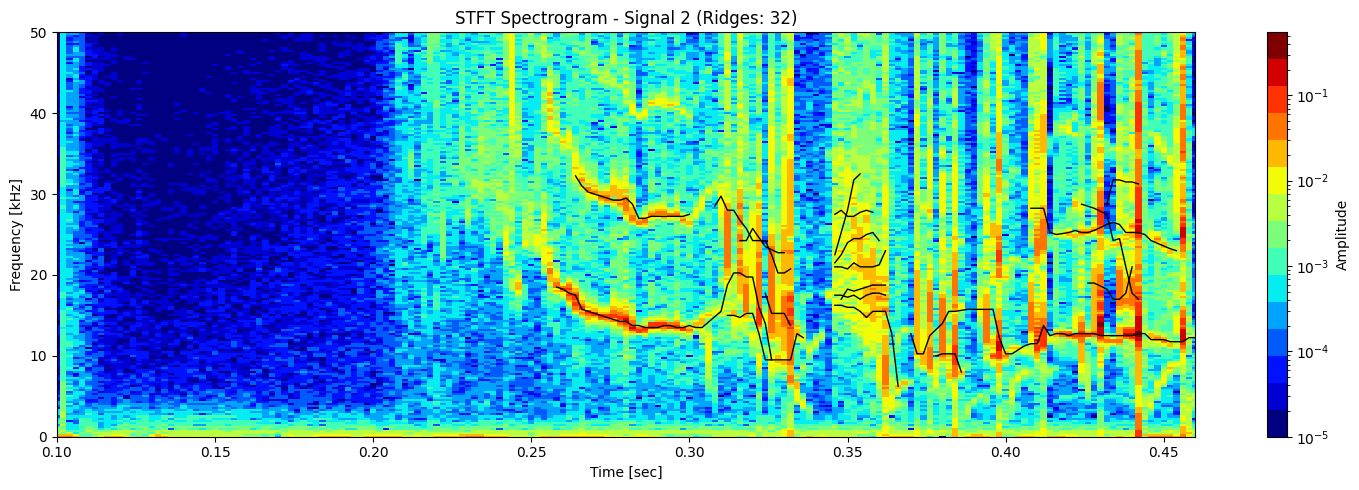

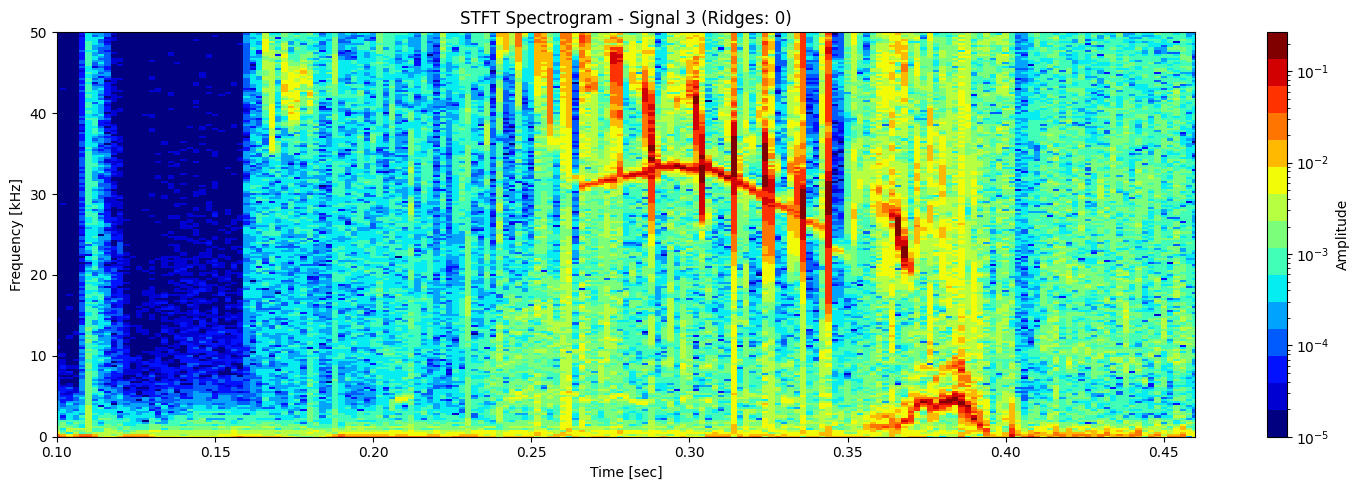

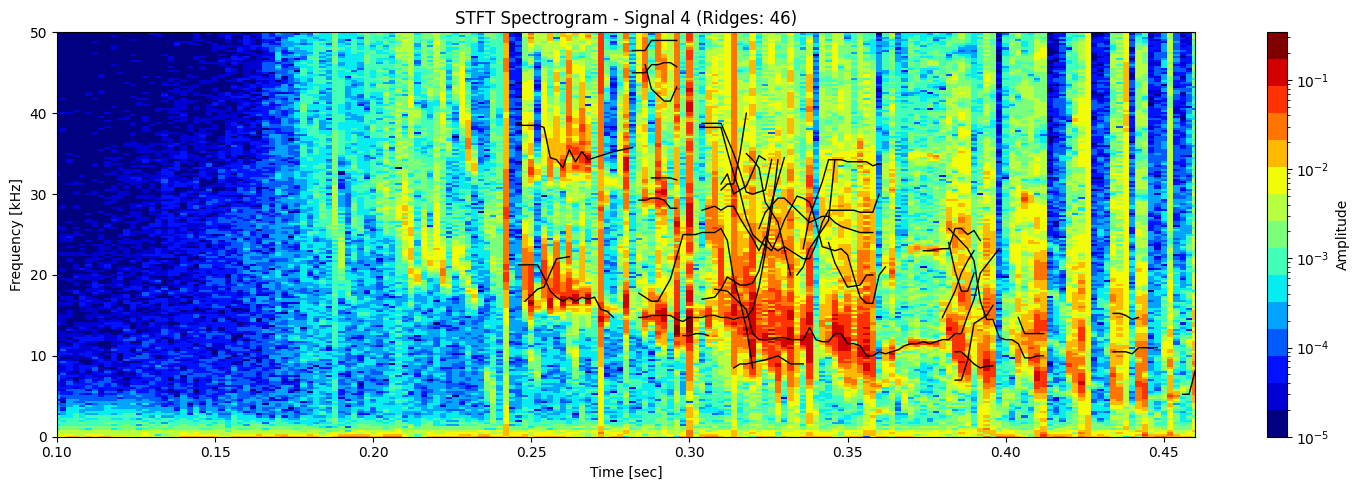

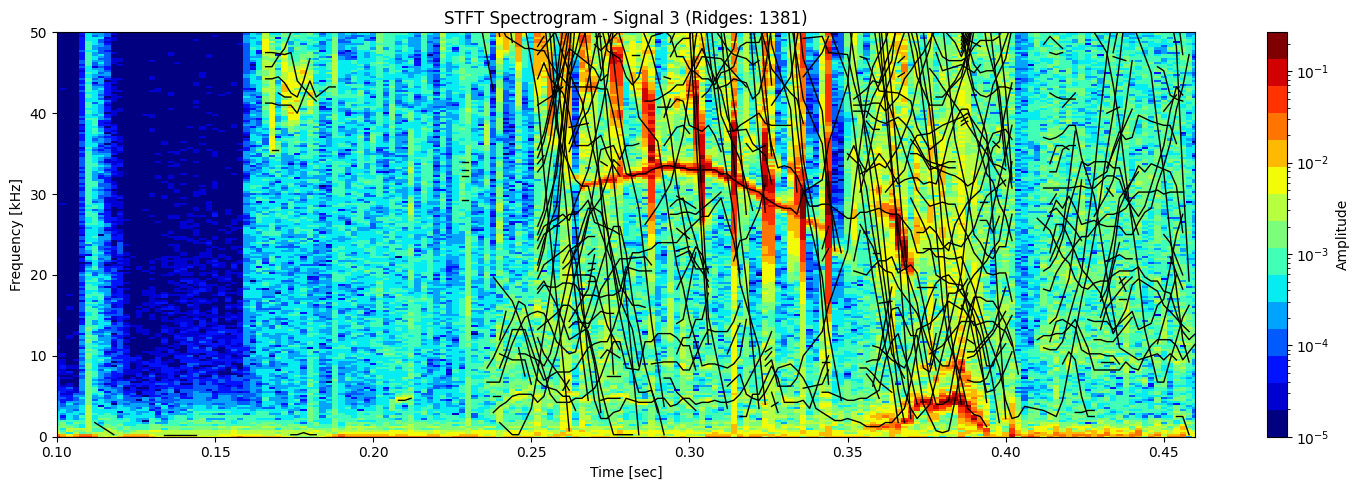

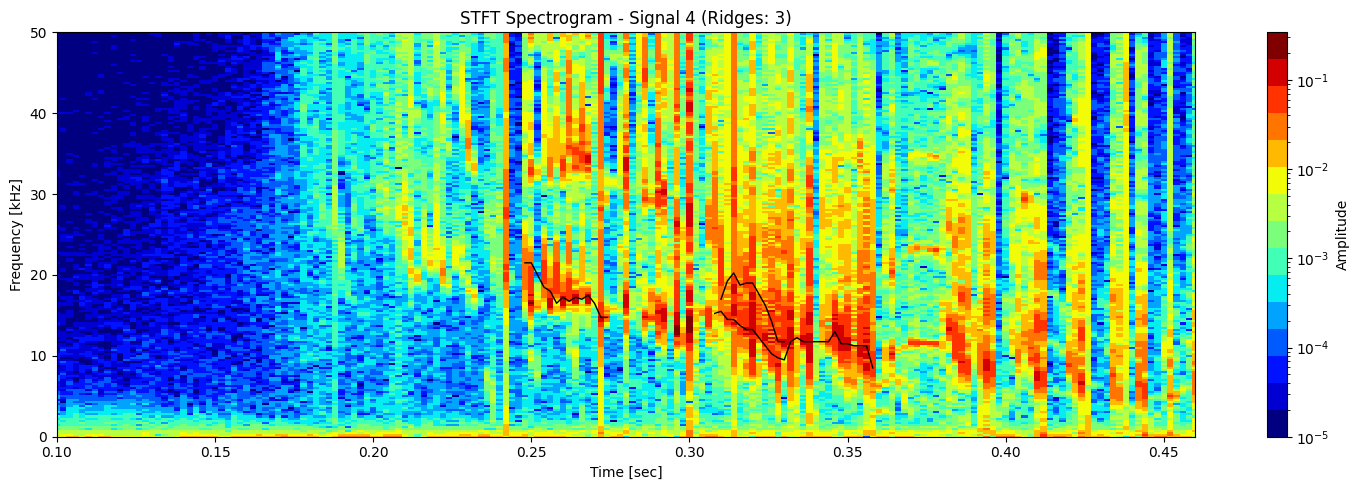

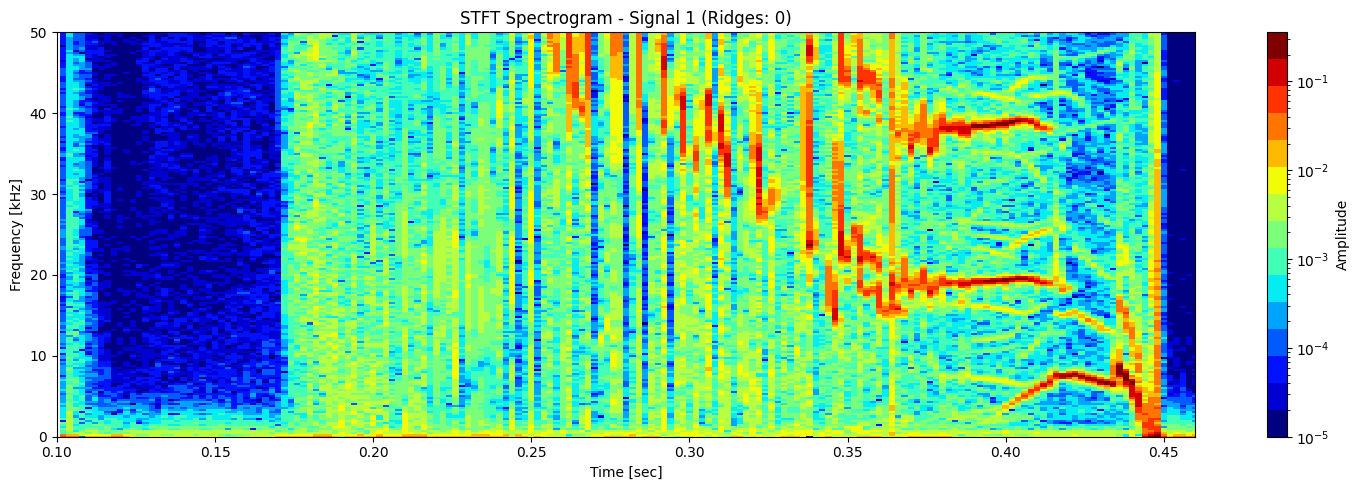

ax.set_title(f"STFT Spectrogram - Signal {i+1} (Ridges: {len(ridges)})")
fig.colorbar(cax, ax=ax, label='Amplitude')
plot_ridges_on_spectrogram(ridges, ax, color='black')
plt.tight_layout()
plt.show()
Processing signal 1/4
→ Number of ridges detected: 0
Processing signal 2/4
→ Number of ridges detected: 4
Processing signal 3/4
→ Number of ridges detected: 0
Processing signal 4/4
→ Number of ridges detected: 3
nperseg = 2000
nfft = 2000
for i, ds in enumerate(ds_list):
print(f"Processing signal {i+1}/{len(ds_list)}")
# Compute sample rate
sample_rate = 1 / float(ds.time_mirnov[1] - ds.time_mirnov[0])
# Compute STFT
f, t, Zxx = stft(ds.values, fs=int(sample_rate), nperseg=nperseg, nfft=nfft)
# Extract ridges
# ridges = extract_denoised_ridges_from_stft(Zxx, f, t)
ridges = extract_denoised_ridges_from_stft(
Zxx, f, t,
quantile_thresh=0.98,
delta_f_max=4000,
max_gap=2,
min_ridge_len=5,
min_avg_amp=0.002,
median_filter_size=(7, 5)
)
# ridges = extract_denoised_ridges_from_stft(
# Zxx, f, t,
# quantile_thresh=0.975, # lower threshold even more
# delta_f_max=5000, # more forgiving frequency jump
# max_gap=3, # allow skipping over a few bad time slices
# min_ridge_len=4, # allow shorter ridges
# min_avg_amp=0.0015, # keep lower amplitude tracks
# median_filter_size=(5, 3) # can stay as-is
# )
# Print ridge count
print(f"→ Number of ridges detected: {len(ridges)}")
# Plot
fig, ax = plt.subplots(figsize=(15, 5))
cax = ax.pcolormesh(
t, f / 1000, np.abs(Zxx),
shading='nearest',
cmap=plt.get_cmap('jet', 15),
norm=LogNorm(vmin=1e-5)
)
ax.set_ylim(0, 50)
ax.set_xlim(0.1, 0.46)
ax.set_ylabel('Frequency [kHz]')
ax.set_xlabel('Time [sec]')
ax.set_title(f"STFT Spectrogram - Signal {i+1} (Ridges: {len(ridges)})")
fig.colorbar(cax, ax=ax, label='Amplitude')
plot_ridges_on_spectrogram(ridges, ax, color='black')
plt.tight_layout()
plt.show()
Processing signal 1/4
→ Number of ridges detected: 0
Processing signal 2/4
→ Number of ridges detected: 32
Processing signal 3/4
→ Number of ridges detected: 0
Processing signal 4/4
→ Number of ridges detected: 46
nperseg = 2000
nfft = 2000
for i, ds in enumerate(ds_list):
print(f"Processing signal {i+1}/{len(ds_list)}")
# Compute sample rate
sample_rate = 1 / float(ds.time_mirnov[1] - ds.time_mirnov[0])
# Compute STFT
f, t, Zxx = stft(ds.values, fs=int(sample_rate), nperseg=nperseg, nfft=nfft)
# Extract ridges
# ridges = extract_denoised_ridges_from_stft(Zxx, f, t)
# ridges = extract_denoised_ridges_from_stft(
# Zxx, f, t,
# quantile_thresh=0.98,
# delta_f_max=4000,
# max_gap=2,
# min_ridge_len=5,
# min_avg_amp=0.002,
# median_filter_size=(7, 5)
# )
ridges = extract_denoised_ridges_from_stft(
Zxx, f, t,
quantile_thresh=0.975, # lower threshold even more
delta_f_max=5000, # more forgiving frequency jump
max_gap=3, # allow skipping over a few bad time slices
min_ridge_len=4, # allow shorter ridges
min_avg_amp=0.0015, # keep lower amplitude tracks
median_filter_size=(5, 3) # can stay as-is
)
# Print ridge count
print(f"→ Number of ridges detected: {len(ridges)}")
# Plot
fig, ax = plt.subplots(figsize=(15, 5))
cax = ax.pcolormesh(
t, f / 1000, np.abs(Zxx),
shading='nearest',
cmap=plt.get_cmap('jet', 15),
norm=LogNorm(vmin=1e-5)
)
ax.set_ylim(0, 50)
ax.set_xlim(0.1, 0.46)
ax.set_ylabel('Frequency [kHz]')
ax.set_xlabel('Time [sec]')
ax.set_title(f"STFT Spectrogram - Signal {i+1} (Ridges: {len(ridges)})")
fig.colorbar(cax, ax=ax, label='Amplitude')
plot_ridges_on_spectrogram(ridges, ax, color='black')
plt.tight_layout()
plt.show()
Processing signal 1/4
→ Number of ridges detected: 0
Processing signal 2/4
→ Number of ridges detected: 50
Processing signal 3/4
→ Number of ridges detected: 0
Processing signal 4/4
→ Number of ridges detected: 65
def extract_denoised_ridges_from_stft(
Zxx, f, t,
quantile_thresh=0.98,
fixed_amp_thresh=None,
delta_f_max=4000,
max_gap=2,
min_ridge_len=4,
min_avg_amp=1e-4,
median_filter_size=(5, 3)
):
"""
Ridge extraction with denoising and flexible amplitude thresholding.
Parameters:
- Zxx: STFT complex matrix (f x t)
- f, t: frequency and time axes
- quantile_thresh: quantile for adaptive amp threshold (ignored if fixed_amp_thresh is set)
- fixed_amp_thresh: set a constant amplitude threshold (overrides quantile_thresh)
- delta_f_max: max frequency jump allowed (Hz)
- max_gap: max allowed time steps without match
- min_ridge_len: min number of time points for a valid ridge
- min_avg_amp: min average amplitude for a ridge to survive
- median_filter_size: (f, t) smoothing kernel
Returns:
- List of ridges, each as a list of (time, frequency, amplitude)
"""
mag = np.abs(Zxx)
mag = median_filter(mag, size=median_filter_size)
if fixed_amp_thresh is not None:
amp_thresh = fixed_amp_thresh
else:
amp_thresh = np.quantile(mag, quantile_thresh)
num_t = len(t)
peaks_by_time = []
for i in range(num_t):
peaks, _ = find_peaks(mag[:, i], height=amp_thresh)
peaks_by_time.append([(f[p], mag[p, i]) for p in peaks])
active_tracks = []
finished_tracks = []
for i in range(num_t):
used_peaks = set()
new_tracks = []
for track in active_tracks:
f_pred = (
track['data'][-1][1]
if len(track['data']) < 2
else 2 * track['data'][-1][1] - track['data'][-2][1]
)
best_match, best_cost = None, float('inf')
for j, (f_cand, amp_cand) in enumerate(peaks_by_time[i]):
if j in used_peaks:
continue
if abs(f_cand - f_pred) < delta_f_max:
amp_prev = track['data'][-1][2]
cost = abs(f_cand - f_pred) + 1000 * abs(amp_cand - amp_prev)
if cost < best_cost:
best_cost = cost
best_match = (j, f_cand, amp_cand)
if best_match is not None:
j, f_cand, amp_cand = best_match
track['data'].append((t[i], f_cand, amp_cand))
track['last_seen'] = i
used_peaks.add(j)
new_tracks.append(track)
elif i - track['last_seen'] <= max_gap:
new_tracks.append(track)
else:
finished_tracks.append(track['data'])
# Start new tracks from unmatched peaks
for j, (f_cand, amp_cand) in enumerate(peaks_by_time[i]):
if j not in used_peaks:
new_tracks.append({
'data': [(t[i], f_cand, amp_cand)],
'last_seen': i
})
active_tracks = new_tracks
all_tracks = finished_tracks + [trk['data'] for trk in active_tracks]
final_ridges = [
trk for trk in all_tracks
if len(trk) >= min_ridge_len and np.mean([a for _, _, a in trk]) >= min_avg_amp
]
return final_ridges
nperseg = 2000
nfft = 2000
for i, ds in enumerate(ds_list):
print(f"Processing signal {i+1}/{len(ds_list)}")
# Compute sample rate
sample_rate = 1 / float(ds.time_mirnov[1] - ds.time_mirnov[0])
# Compute STFT
f, t, Zxx = stft(ds.values, fs=int(sample_rate), nperseg=nperseg, nfft=nfft)
# Extract ridges
# ridges = extract_denoised_ridges_from_stft(Zxx, f, t)
ridges = extract_denoised_ridges_from_stft(
Zxx, f, t,
fixed_amp_thresh=1e-3,
delta_f_max=4000,
min_ridge_len=2,
min_avg_amp=1e-4
)
# Print ridge count
print(f"→ Number of ridges detected: {len(ridges)}")
# Plot
fig, ax = plt.subplots(figsize=(15, 5))
cax = ax.pcolormesh(
t, f / 1000, np.abs(Zxx),
shading='nearest',
cmap=plt.get_cmap('jet', 15),
norm=LogNorm(vmin=1e-5)
)
ax.set_ylim(0, 50)
ax.set_xlim(0.1, 0.46)
ax.set_ylabel('Frequency [kHz]')
ax.set_xlabel('Time [sec]')
ax.set_title(f"STFT Spectrogram - Signal {i+1} (Ridges: {len(ridges)})")
fig.colorbar(cax, ax=ax, label='Amplitude')
plot_ridges_on_spectrogram(ridges, ax, color='black')
plt.tight_layout()
plt.show()
Processing signal 1/4
→ Number of ridges detected: 952
Processing signal 2/4
→ Number of ridges detected: 998
Processing signal 3/4
→ Number of ridges detected: 1381
Processing signal 4/4
→ Number of ridges detected: 1825
